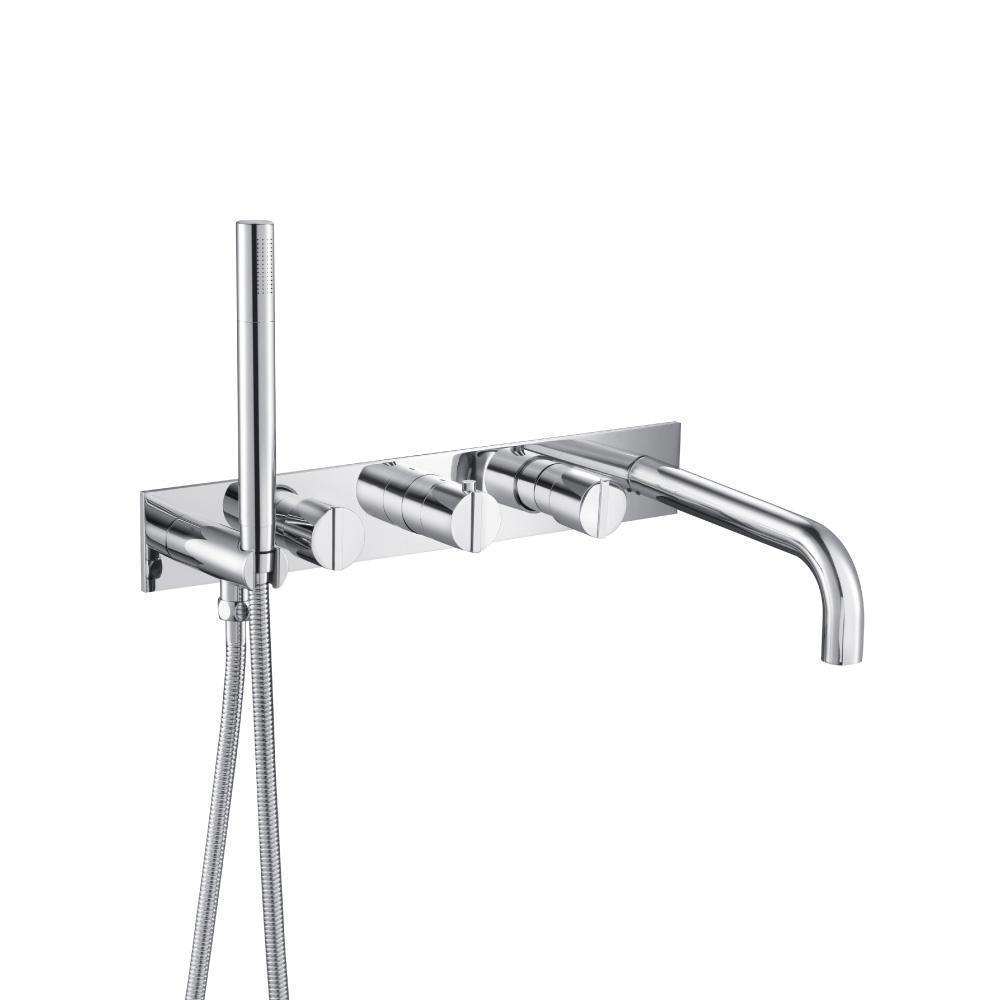

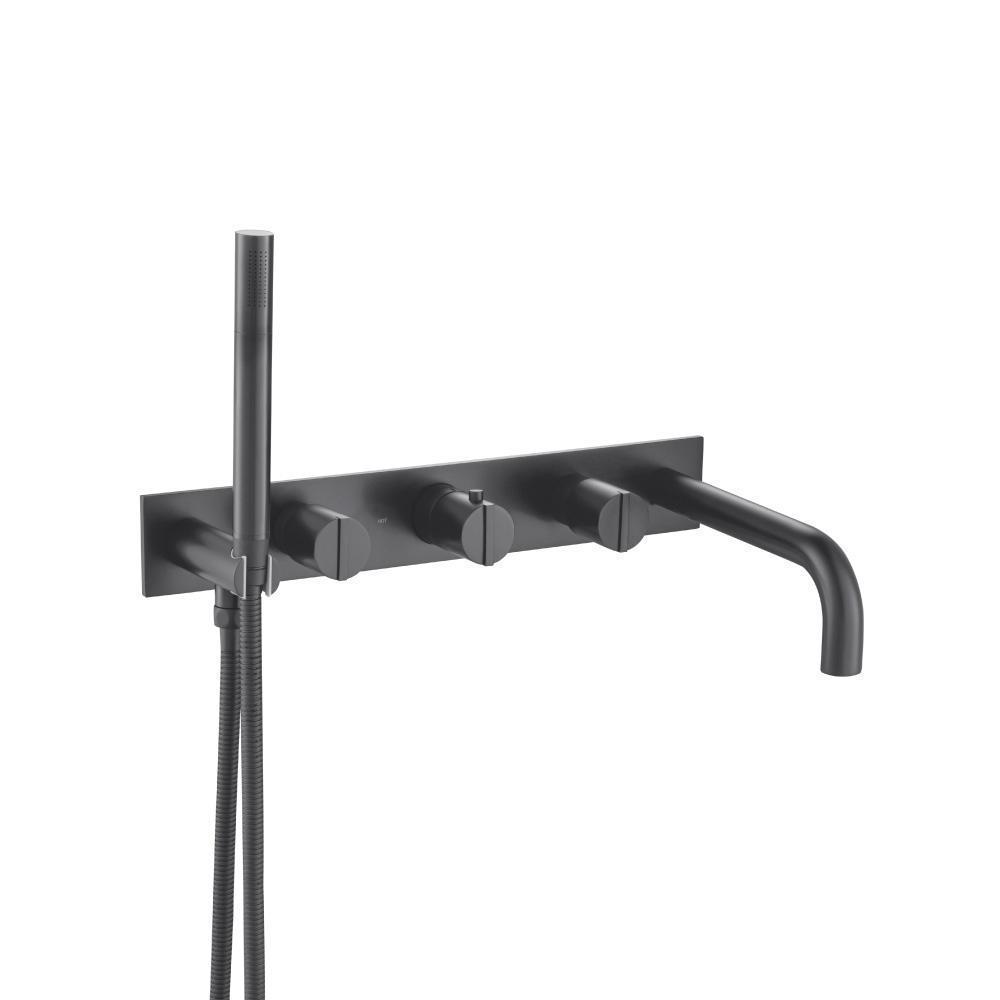

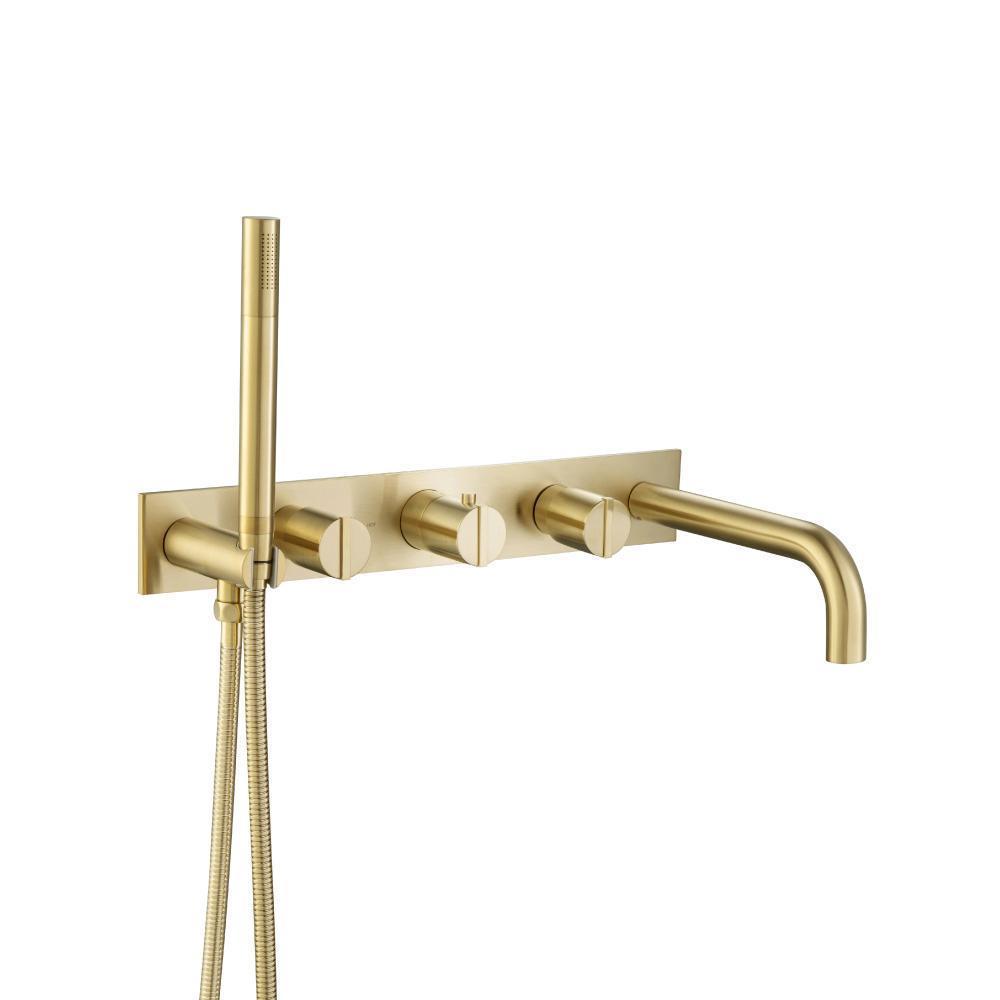

Trim For Wall Mount Tub Filler With Hand Shower
Most of us are familiar with the iconic design of the egg shaped chair floating in the air. The Hanging Egg Chair is a critically acclaimed design that has enjoyed praise worldwide ever since the distinctive sculptural shape was created.
In stock
Bathing > Wall Mount Tub Faucets > 3-Handle Wall Mount Tub Faucets
Flusso
145.2691TSB-145.2691TCP
Share:
Trim For Wall Mount Tub Filler With Hand Shower
HANDLE OPERATION – The middle handle is used to control the temperature of water flowing through the outlet. The left handle controls the volume of water from full flow to a trickle for the output port 1. The right handle controls the volume of water from full flow to a trickle for the output port 2.
ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full hot position, as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
CUT OUT DIMENSIONS – The cut out in the wall should be 16.41” X 1.85” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.
TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 145 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Key Features
- Solid Brass Construction
- Valve Not Included - Trim Only
- 2 Output Ports
- Hand Shower Flow Rate Limited to 1.8 GPM
- Hand Shower & Tub Spout positions can be swapped
- Extension Available - Part # TVH.2691E**
Product Specs
- Material: Brass
- Valve: Not Included
- Handles: Included
- Number Of Handles: 3
- Anti-Scald Feature: Included
- Hose: Included
- Spout Reach: 8.8"
- Handle Style: Knob
