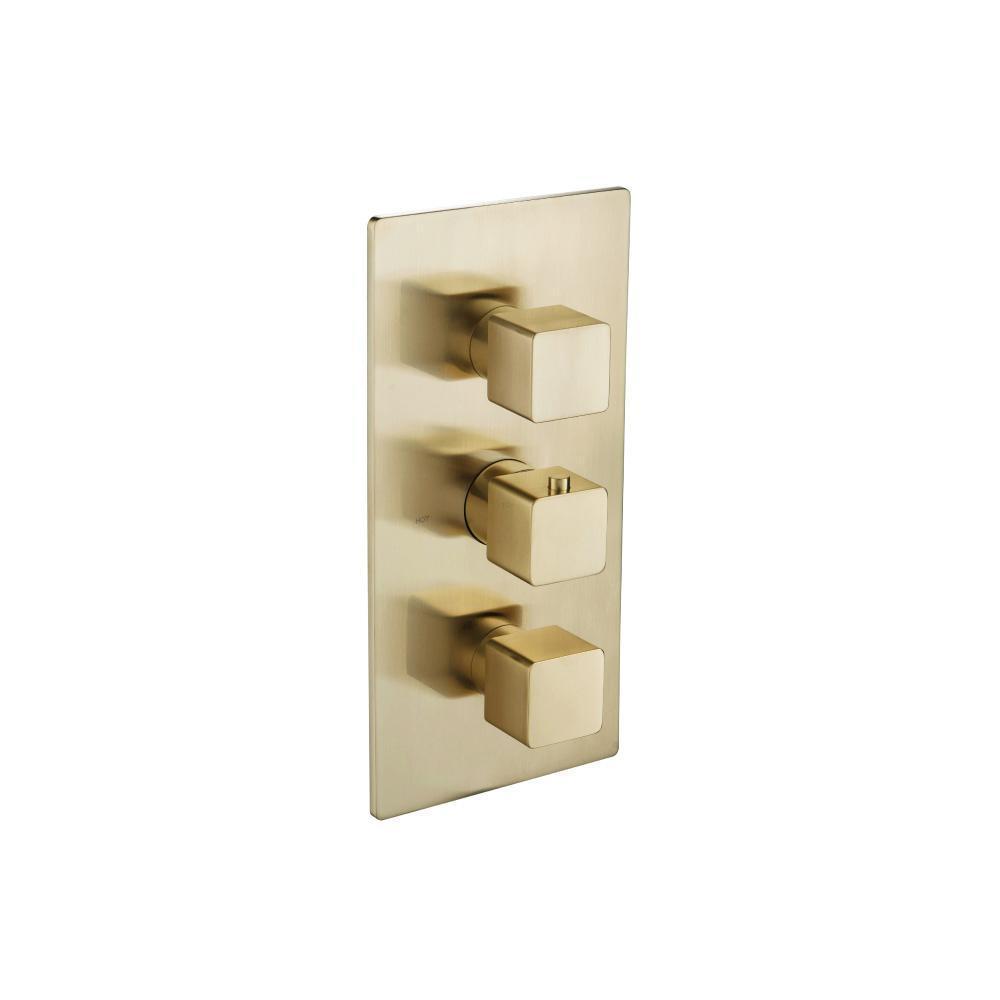

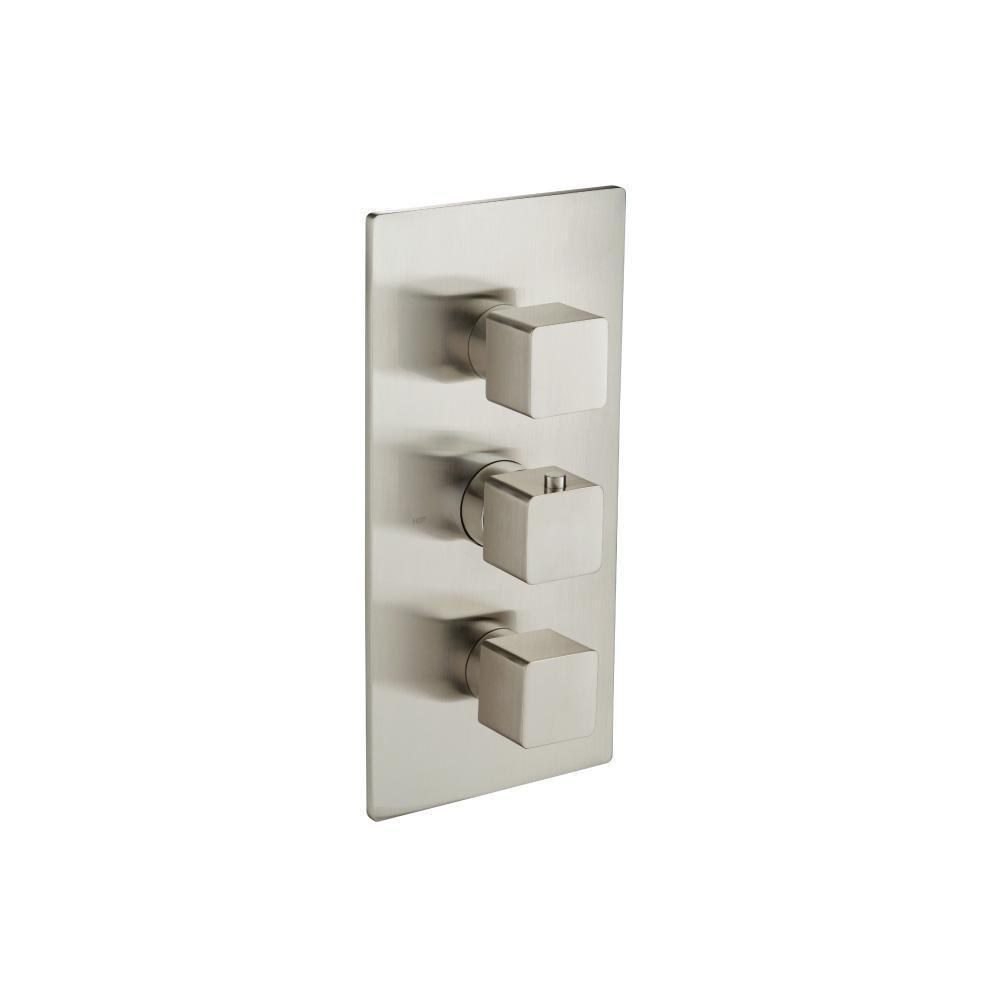

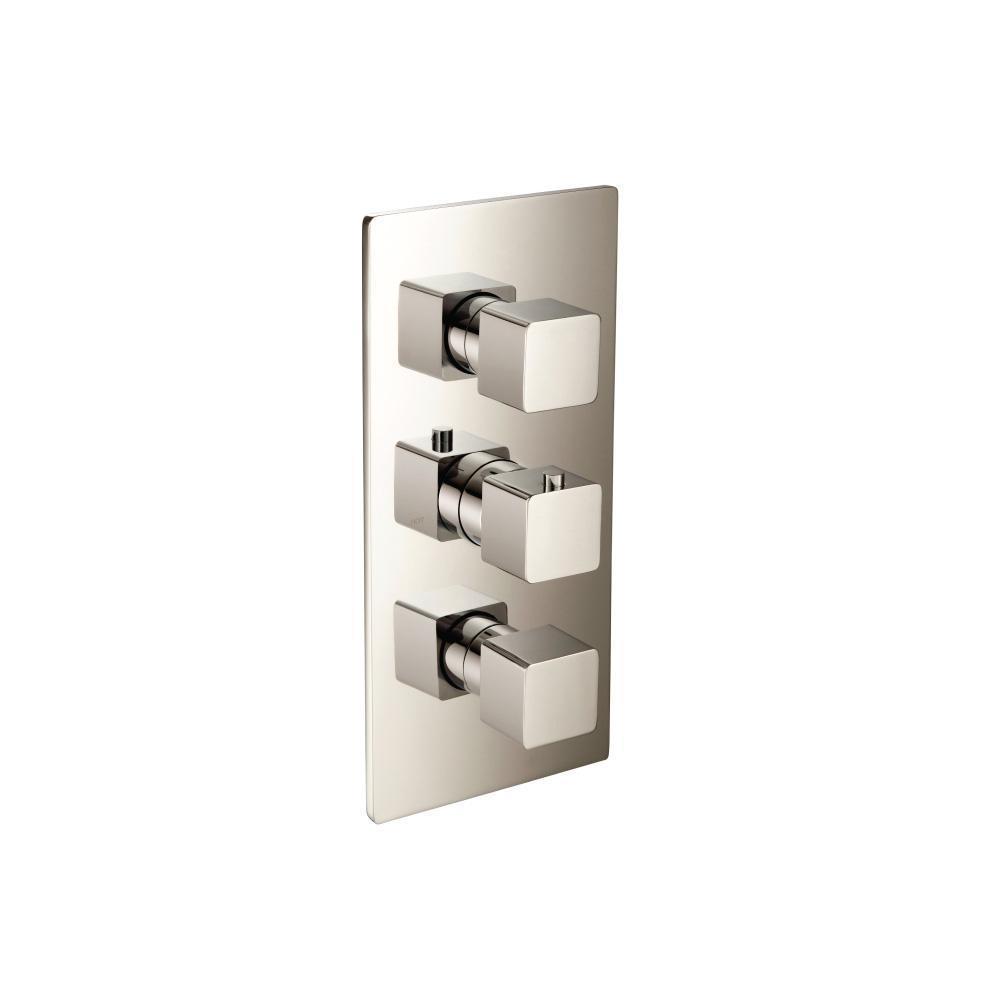

3/4" Thermostatic Valve & Trim - 4 Output
Most of us are familiar with the iconic design of the egg shaped chair floating in the air. The Hanging Egg Chair is a critically acclaimed design that has enjoyed praise worldwide ever since the distinctive sculptural shape was created.
In stock
Showering > Shower Faucets > 4-Output Shower Faucet
Flusso
196.4801SB-196.4801SB
Share:
3/4" Thermostatic Valve & Trim - 4 Output
SUPPLY STOPS – There are two safety stops at each water inlet to prevent water flow in case of installation and repairs.
HANDLE OPERATION – The middle handle sets the temperature. The top handle controls output port 1 and 2 and the bottom handle controls output port 3 and 4. Each port has full volume control capability and can be activated at the same time. Output ports 1 and 2 cannot operate simultaneously. Output ports 3 and 4 cannot operate simultaneously.
ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full hot position, as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.
VALVE INSTALLATION – As the valve is installed, care should be taken to maintain a proper distance from the back of the valve to the finished tile which should be between 2.77 and 3.44 inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.
CUT OUT DIMENSIONS – The cut out in wall should be 8.81 X 4.44 Inches which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut-out hole in the wall.
TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.
| Collection | Serie 196 |
| Style | Contemporary / Modern |
| Warranty | Limited Lifetime Warranty. See Warranty page for complete details. |
Key Features
- Solid Brass Construction
- Includes Thermostatic Valve - TVH.4801
- Shared 4 Port Water Flow
- Extensions Available - TVH.4401E**
Product Specs
- Connection Size: 3/4" Female
- Integrated Volume Control: Yes
- Valve Included: Yes
- Valve Type: Thermostatic
- Installation Type: Wall Mounted
- Extensions Available: Yes
- Material: Brass
- Anti-Scald Ring: Included
- Supply Stops: Included
- Temperature Cartridge: TVH.4201-9853
- Handle Style: Knob
- Diverter Cartridge: TVH.4420-1991
- Flow Rate: 8.0 GPM @ 60 PSI
- Output Ports: 4
